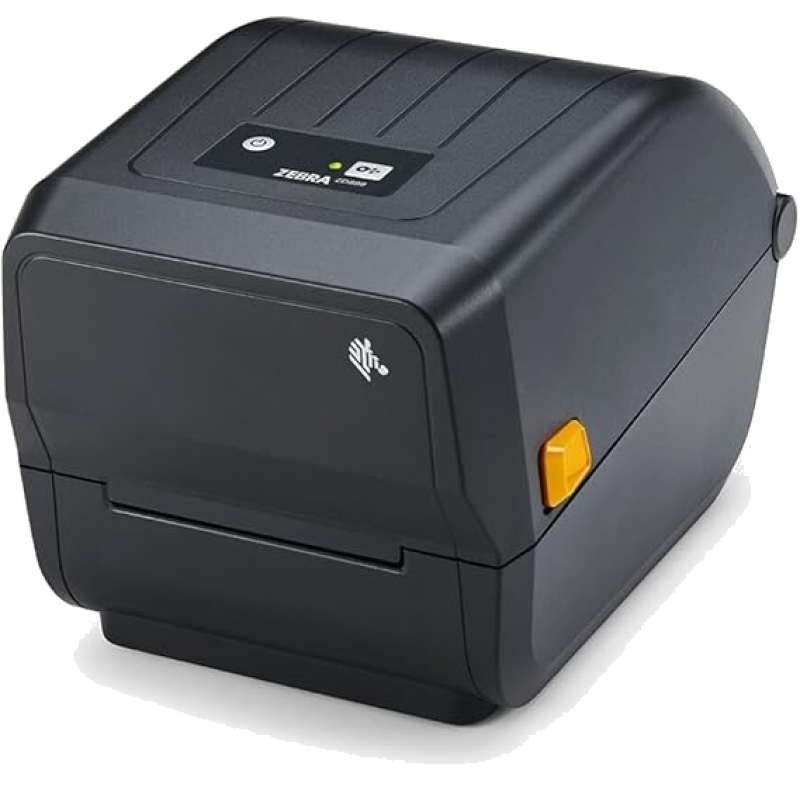

Zebra ZD888 THERMAL TRANSFER DESKTOP

standard features

• Thermal transfer or direct thermal printing
• ZPL and EPL programming languages
• Single LED status indicator
• Single feed/pause button
• USB connection
• OpenACCESS™ design for easy media loading
• Double wall frame construction
• ENERGY STAR certified
• ZebraDesigner Essentials - a practical label design tool.
• Two-year standard warranty
physical parameters

Dimensions Heat Transfer:
10.5 in. L x 7.75 in. W x 7.5 in. H
267 mm long x 197 mm wide x 191 mm high
Thermal:
8.6 in. L x 6.9 in. W x 5.9 in. H
220 mm long x 176 mm wide x 151 mm high
Weight 2.5 lbs./1.1 kg
Printer Specifications

Resolution* 203 dpi/8 dots per mm
Memory 128 MB Flash, 128 MB SDRAM
Maximum print width 4.09 in./104 mm (203 dpi)
Programmable print speed 6 in./152 mm per second or 4 in./102 mm per second
Media Sensors Movable black mark sensor, limited range from center to left
Off-center fixed gap sensor
Firmware ZPL II; EPL 2; XML
Media and Ribbon Characteristics

Maximum label length 39.0 in./991 mm
Media width 1.00 in. / 25.4 mm to 4.4 in. / 112 mm
Media Roll Size OD: 5.00 in./127 mm; Core ID: 0.5 in. (12.7 mm), 1.0 in. (25.4 mm) standard and 1.5 in. (38.1 mm)
Thickness 0.003 in. (0.08 mm) minimum; 0.0075 in. (.1905 mm) maximum (tear-off mode only)
Media types Roll-fed or fan-fed, die-cut or continuous with or without black mark media, label stock, continuous receipt paper, and wristbands
Ribbon outer diameter 2.6 in./ 66 mm (300 m); 1.34 in./ 34 mm (74 m)
Ribbon length up to 984 ft. (300 m)
Ribbon Ratio Media: Ribbon is 1:4 (300 m)
Media: Ribbon is 1:1 (74 m)
Ribbon Width 1.33 in./ 33.8 mm ~ 4.3 in./ 109.2 mm
Ribbon Core ID 300m Ribbon: 1 in./ 25.4 mm
74 m Ribbon: 0.5 in./ 12.7 mm
operating characteristics

Operating temperature 40° to 105° F/4.4° to 41° C
Storage Temperature -40° to 140° F/-40° to 60° C
Operating humidity 10% to 90%, non-condensing
Storage humidity 5% to 95%, noncondensing
Electrical Specifications Auto-detectable (PFC Compatible) 100-240VAC, 50-60Hz, ENERGY STAR certified
