XP-P501A is a powerful 2-inch ticket printer coming with 70 mm/s Max.
fast print speed, extremely compact size for easy-to-take with you.

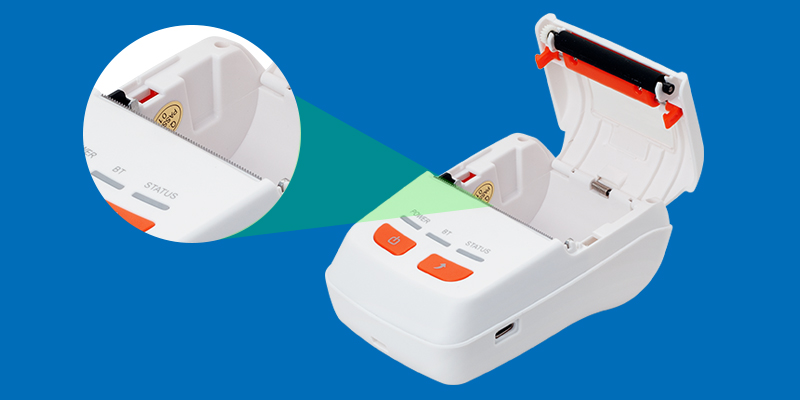

Equipped with sharp and durable gear to help you tear every printed ticket quickly and neatly
Main Features:
1.Multiple 1D barcode printing
2.QRCODE 2D barcode printing
3.NV LOGO download picture printing (picture format : BMP)
4.Compatible with Windows/Android/ iOS systems
5.Paper out alarm
6.Multiple languages available: Simplified Chinese, Traditional Chinese, Korean, Japanese and 19 international languages
Product Specification
| Model | XP-P501A |
| Printing Features | |
| Printing method | Direct thermal |
| Resolution | 203 DPI |
| Line spacing | 3.75mm (Adjustable by commands) |
| Print width | 48 mm |
| Max.print speed | Max. 70 mm/s |
| Paper width | 58 mm |
Paper roll diameter | 40 mm |
| Performance Features | |
| Interfaces | USB+Bluetooth(1+1) |
| Input buffer | 128 Kbytes |
| NV Flash | 64 Kbytes |
| Emulation | ESC/POS |
| Fonts/Graphics/Symbologies | |
| Character size | ANK，Font A：1.5×3.0mm（12×24 dots）Font B：1.1×2.1mm（9×17 dots） simplified/traditional Chinese：3.0×3.0mm（24×24 dots） |
| Barcode types | 1D:UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/CODABAR/CODE93/CODE128 |
Extended character sheet | PC347（Standard Europe）、Katakana、PC850（Multilingual）、PC860（Portuguese）、PC863（Canadian-French）、 PC865（Nordic）、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、PC858、 IranII、Latvian、Arabic、PT151（1251） |
| Physical Features | |
| Dimension | 124*83*51mm (L*W*H) |
| Weight | 0.23 kg |
| Compatible systems | |
| Systems | Windows/Android/iOS/Mac/Linux |
| Power supply | |
| Battery | 7.4V/ 2000mAh |
| Charging input | DC 5V/2A |
| Environmental Conditions | |
| Operation environment | 0～45℃，10～80%RH no condensing |
| Storage environment | -10～60 ℃，≤10~90% RH no condensing |
