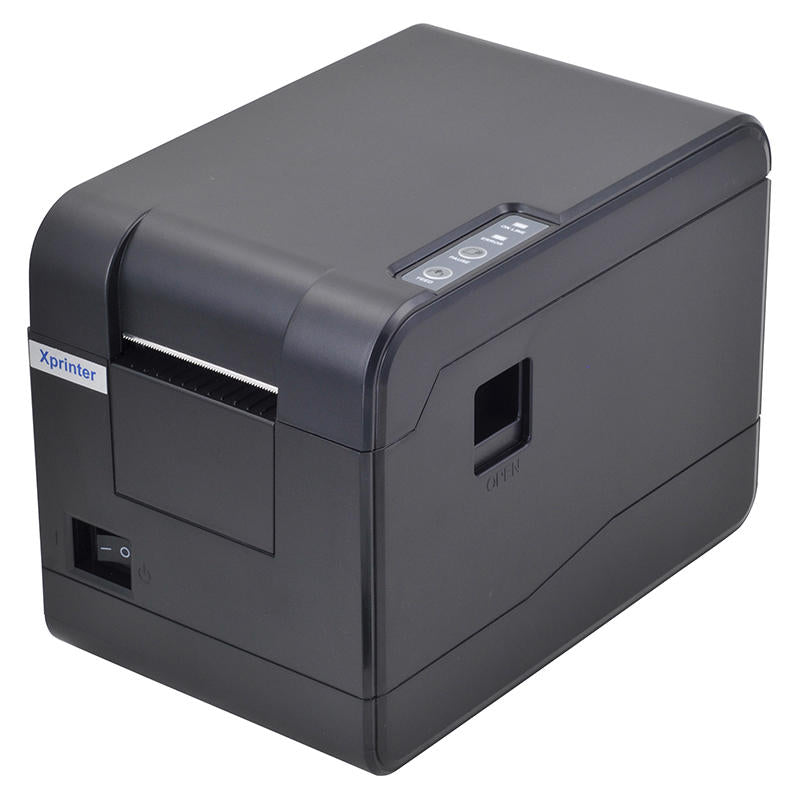

XP-233 B
Model :- XP-233B Printing Features: Resolution :- 203 DPI Printing method :- Thermal barcode Thermal receipt Print speed :- 50.8~101 mm/s 90 mm/s Max. …
- Cash on deliveryPay when it arrives
- Free returns14 days, we collect
- Setup supportWe help you install it
- WarrantyGenuine, warranted stock
Model :- |
XP-233B |
|
Printing Features: |
||
| Resolution :- | 203 DPI | |
| Printing method :- | Thermal barcode Thermal receipt | |
| Print speed :- |
50.8~101 mm/s |
90 mm/s Max. |
| Print width :- |
56 mm |
48 mm |
Media: |
||
| Media type :- |
Thermal stickers paper/ adhesive paper |
Thermal paper |
| Media width :- |
20~60 mm |
58 mm |
| Media thickness :- |
0.06 ~ 0.08 mm |
|
| Media roll diameter :- |
Max.100 mm |
|
Performance Features: |
||
| Input buffer :- |
4096 Kbytes |
4096 Kbytes |
| NV flash :- | 4096 Kbytes | 4096 Kbytes |
| Interfaces :- |
USB |
|
| Sensors :- |
Paper End/ Cover Open/ Gap |
Paper End/ Cover Open |
| Drawer port :- |
1 ports (Pin 2 for cashdrawer) |
|
Fonts/Graphics/Symbologies: |
||
| Character :- |
Font 0 to Font8 |
Font A: 12x24, |
| 1D barcode :- |
CODE128、EAN128、ITF、CODE39、CODE39C、CODE39S、CODE93、EAN13、EAN13+2、EAN13+5、EAN8、EAN8+2、EAN8+5、CODABAR、POSTNET、UPC-A、UPCA+2、UPCA+5、UPCE、UPCE+2、UPCE+5、MSI、MSIC、PLESSEY、ITF14、EAN14 |
Coda Bar, Code 39, Code 93, Code 128, EAN-8, EAN-13, ITF, UPC-A, UPC-E |
| 2D bar code :- | QR CODE，PDF417，Data Matrix | |
| Emulaion :- |
TSPL |
ESC/POS |
Physical Features: |
||
| Dimension :- | 190x135x137mm (D×W×H) | |
| Weight :- | 1.18 kg | |
Reliability: |
||
| Print head life :- | 50 km | |
Software: |
||
| Driver :- |
Windows |
Windows/ Linux/ Mac/ Android |
| SDK :- |
iOS/ Android/ Windows |
|
Power supply: |
||
| Input :- |
100-240V 50/60H |
|
| Output :- |
DC 12V/3A |
|
Environmental Conditions: |
||
|
Operation environment :- |
0~45 ℃ Humidity:RH 20 ~ 80% |
|
| Storage environment :- |
-40 ~ 55℃; Humidity: RH ≤93% |
|
PRODUCT WARRANTY : 1YEAR
XPrinter XP-233B -Pdf
