Ink Cartridge Smart Card NO 2520 Black 50ml

Data sheet

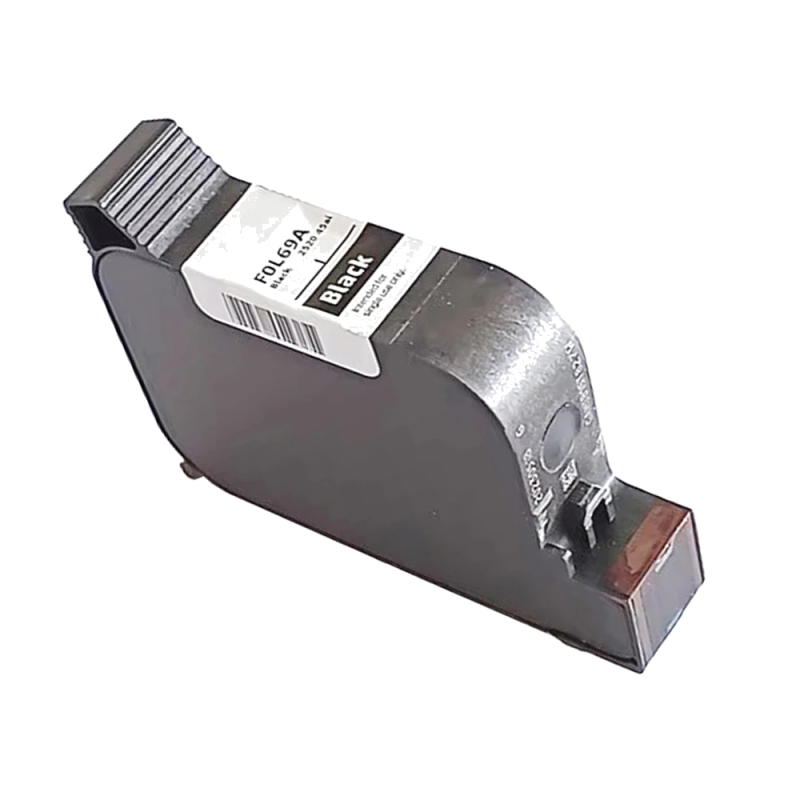

HP 2520 Black Smart Card
Print Cartridge
Dark black, high-optical density ink for high-resolution text,
bar codes and graphics
Data sheet | HP 2520 Black Smart Card Print Cartridge
© Copyright 2015, 2020 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for
HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be
construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
4AA6-1721ENW, August 2020. Rev 2
Ink type Original HP pigment-blended ink
Resolution Up to 600 dpi
Nozzle count 300
Print swath 12.7 mm (0.5 in)
Maximum firing frequency 6 kHz
Average drop volume 30 pl
Ink fill level 50 ml
Number of electrical interconnect pads 52+4 (printhead and smart card)
Operating conditions 10 to 40° C (50 to 104° F), 10 to 80% RH
Shipping/storage conditions 10 to 30° C (50 to 86° F), 5 to 80% RH
Altitude: 0 to 5000 m orientation nozzles up or side
Ordering information
Product number Product description
F0L69A HP 2520 Black Smart Card Print Cartridge
