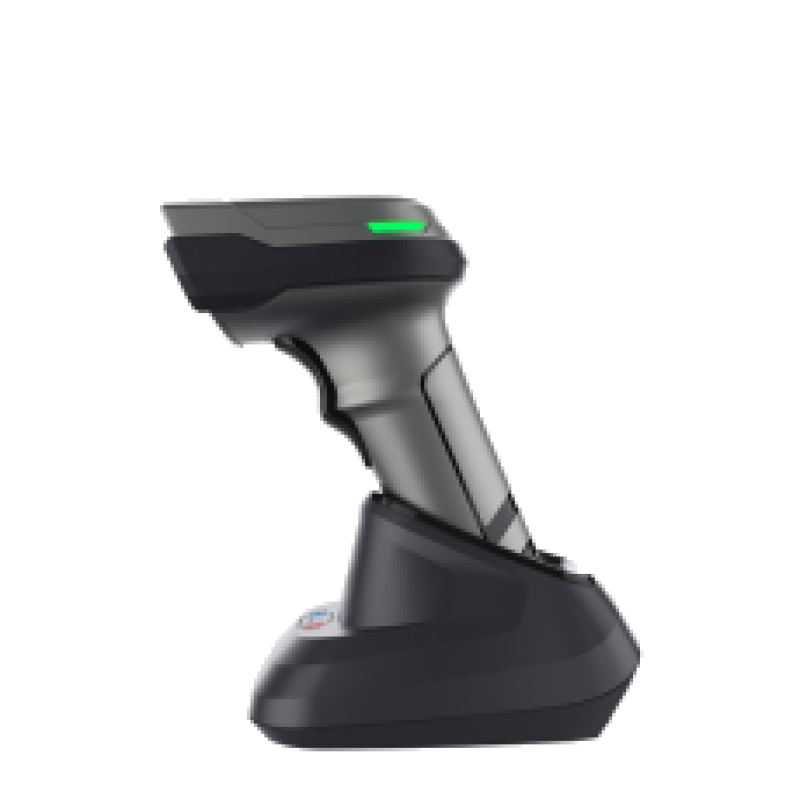

XB-D66T is the 2D Industrial 2.4G Bluetooth barcode scanner with multifuntional charging base which has the one-click pairing function, no need to rely on setting codes. Accurate contact charging function, freely placed the gun on the base to charge. The Transmission distance can be reached 100m(Open yard). It can read all mainstream 1D 2D codes DM PDF417 Data Matrix QR codes.
Product Feature
• Support various barcodes such as WeChat and Alipay
• New decoding chip for interpreting various 1D and 2D barcodes
• Scan code quickly, up to 120 FPS
• Detachable battery design, enhance the using convenience.
• Strong recognition of folding code, stain code etc.
Specification | |
Performance Parameters | |
Light Sources: | (Aimer)RED color LED, (illumination)White color LED |
Supported Symbologies | 1D: Codabar, Code 39, Code 32 Pharmaceutical(PARAF), Interleaved 2 of 5,NEC 2 of 5, Code 93, Straight 2 of 5 Industrial, Straight 2 of 5 IATA,Matrix 2 of 5, Code 11, Code 128, GS1-128, UPC-A, UPC-E, EAN/JAN-8,EAN/JAN-13, MSI, GS1 DataBar Omnidirectional, GS1 DataBar Limited,GS1 DataBar Expanded, China Post(Hong Kong 2 of 5), Korea Pos. |
Scanning Principle: | Image CMOS |
Image (Pixels) | 640pixels (H) x 480 pixels (V) |
Scan Angle: | Yaw±65°, Rotation 360°,Pitch±65° |
Print Contrast: | 20% |
Depth of scan field: | Code39(5mil): 7-16cm, Code39(13mil): 7-32cm QR code (15mil): 3-18cm, Codel28(20mil): 6-35cm |
Error Rate: | 1/5million |
Interface: | USB-HID, USB-COM |
Transmission distance: | 100M(Open Yard) |
Communication mode: | Paired dedicated receiver: 2.4G Paired mobile Bluetooth devices: Dual-mode Bluetooth |
Storage mode: | Offline storage mode: When the scanner leaves the connection range,the data is automatically stored. Storage capacity is 200K characters. Inventory storage mode: The scanner can enter inventory mode,with a storage capacity of 200K characters. |
Pairing Mode: | One to One: One Scanner Pairs One Receiver, |
Receiving end: | Dedicated Bluetooth U disk receiver, Android/IOS mobile device |
Physical Parameters | |
Dimensions | 83.5mm*65.7mm*174.8mm |
Material | ABS+PC |
Cable Length | 1 M |
Environmental Parameters | |
Operating Temperature | -20℃ ~50℃ |
Storage Temperature | -40℃~70℃ |
Relative Humidity | 5%~95% RH（Non-condensing） |
Ambient lighting | 0~100000LUX |
Shock Resistance: | Withstands multiple times 1.5 meters drops to concrete |
Electronic Parameters | |
Working Voltage | DC5V±5% |
Operating Current | Standby Current ≥35 mA. Working Current ≥300mA |
Standby Current | OmA(Standby is to cut off battery power) |
Battery Working Time: | 7H |
Lithium battery: | 2200mA |
Charging Time: | 3H |
